Default Hard Drive Connector Issue...

Hi all,

I'm trying to install a spare 40GB Western Digital HD into my Dell Poweredge 600SC as a slave drive, and I'm running into a couple of issues. Keep in mind, this is the first time I've ever done this.

Now, the computer accepts IDE HD's, and the hard drive is a IDE, so it isn't like "I'm trying to make a SATA connect into the IDE plug" or anything, but the connector, as well as the slot on the back of the hard drive are male. Both of them have prongs, so, I cannot plug the connector in. The primary drive, has a male connector, but the slot on the back of the HD is female, so the connector just plugs right in.

Do I need some form of adapter to make this work, or where have I gone wrong? All 4 connectors on the data cable are exactly like this, and I've double checked to ensure I haven't missed one, so I don't know where to go.

Any help would be appreciated.

Thank you!

SignatureSeriesOwner is offline
Old 11-03-2010, 08:32 PM   #2 (permalink)
Techie Beyond Description
MindoverMaster's Avatar
Join Date: Dec 2009
Location: /home
Posts: 12,212
Send a message via MSN to MindoverMaster
Default Re: Hard Drive Connector Issue...

Poweredge is a server, you would be running SCSI. You're not using PATA/IDE.

Neowin.net Steam Account
MindoverMaster is offline
Old 11-03-2010, 08:48 PM   #3 (permalink)
Lord Techie
S0ULphIRE's Avatar
Join Date: Mar 2007
Location: Australia
Posts: 8,050
Send a message via MSN to S0ULphIRE
Default Re: Hard Drive Connector Issue...

The server has IDE as well, that's not the issue. You're right though, most old servers did have SCSI interfaces.

OP, I think those old servers have a 'backplane' card which the IDE channels plugged into. It's like a separate PCB that the drives plug into (with power ports right next to the data ports). Can you see that?
"As a result of all this hardship, dirt, thirst, and wombats, you would expect Australians to be a sour lot. Instead, they are genial, jolly, cheerful, and always willing to share a kind word with a stranger, unless they are an American." -- Douglas Adams
S0ULphIRE is offline
Old 11-03-2010, 09:05 PM   #4 (permalink)
Newb Techie
Join Date: Oct 2010
Posts: 5
Default Re: Hard Drive Connector Issue...

There is a "card" which plugs into the top green connector on the motherboard, that has two connectors on the end of the card closest to me. One, has the data cable plugged into it, the other is blank. Is this the card you are referring to?
SignatureSeriesOwner is offline
Old 11-05-2010, 08:46 AM   #5 (permalink)
Newb Techie
Join Date: Oct 2010
Posts: 5
Default Re: Hard Drive Connector Issue...

Here is what I am referring to:

Is that the card which you were speaking of?

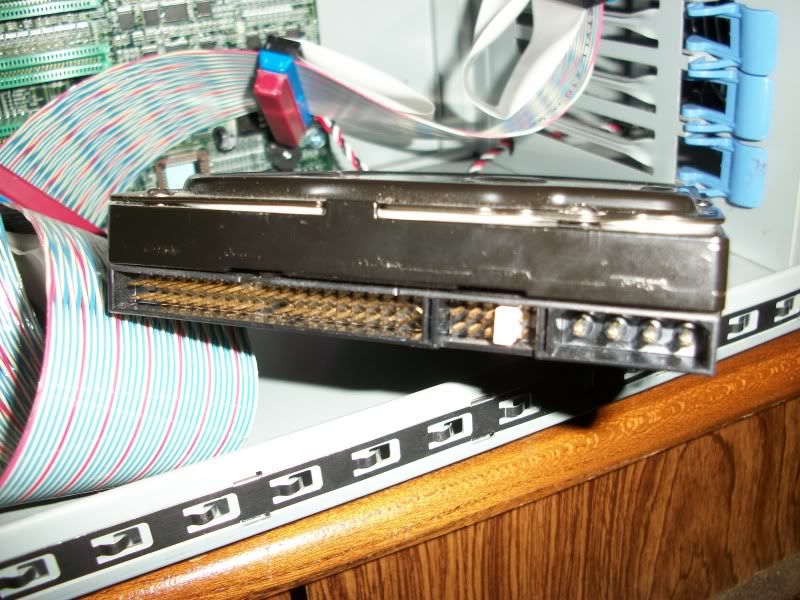

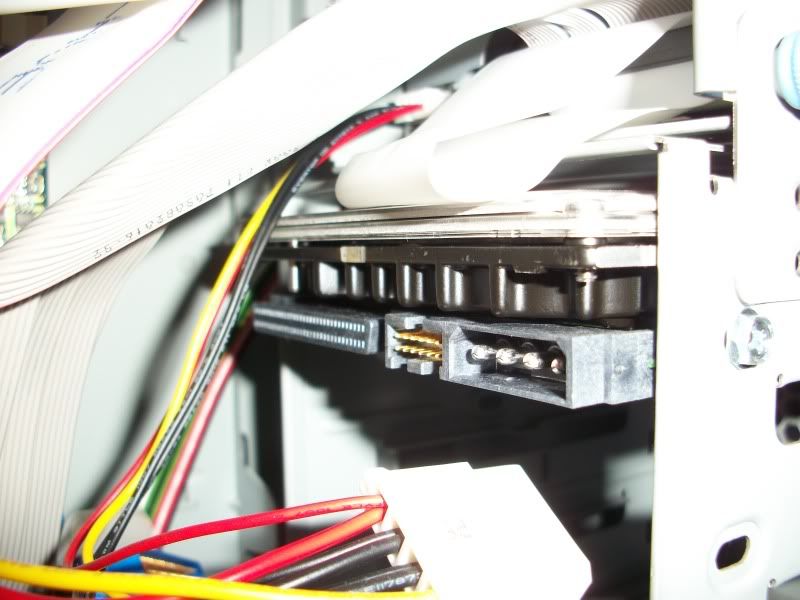

This is the comparison of the hard drive connections, as you can see, one is male, and one is female. Both are IDE drives.



Any more assistance guys? I'd really like to use it, but it would appear I need an adapter that would allow me to plug the male end of the connector into the adapter, then the adapter into the male end of the hard drive, to complete the connection. Does such a thing exist?
SignatureSeriesOwner is offline
Old 11-05-2010, 09:00 AM   #6 (permalink)
Seg Fault'n
Join Date: Jul 2005
Location: The dried husk where America came from
Posts: 5,799
Default Re: Hard Drive Connector Issue...

Nope. The card and the first HDD are SCSI, the second HDD is IDE. Look on the motherboard itself and you might find an IDE socket.


There are in order of increasing severity: lies, darn lies, statistics, and computer benchmarks. - diskinfo man page
"Get your money and let's go to court!" - Craig Mudie, MS
