Old 05-01-2008, 11:41 PM   #11 (permalink)
Devious Techie

therascalking's Avatar

Join Date: May 2007
Location: Fullerton, CA, USA
Posts: 479
Send a message via ICQ to therascalking Send a message via AIM to therascalking Send a message via Yahoo to therascalking
Default Re: New Upgrade Build! (Pics Soon!)

WHOOO! okay so my parts got here yesterday, and i was up till about 1 in the morning working on assembling it... and i took a BUNCH of pictures along the way... i wasss going to wait until my Tempest got here, but i got a message from the ebay store i bought it from saying that it had been recalled and wouldnt be here for another week...
so i started it anyways and just put everything in my old case for now... ill put more pics up once i get my Tempest... also, i (again) didnt bother too much with the wire management... both because this case isnt really built great for it... and because its only gonna be in this case for another couple days... so, i know its messy... but im writing from it right now, and its pretty darn amazing, so idc... haha... anywho... pictures!

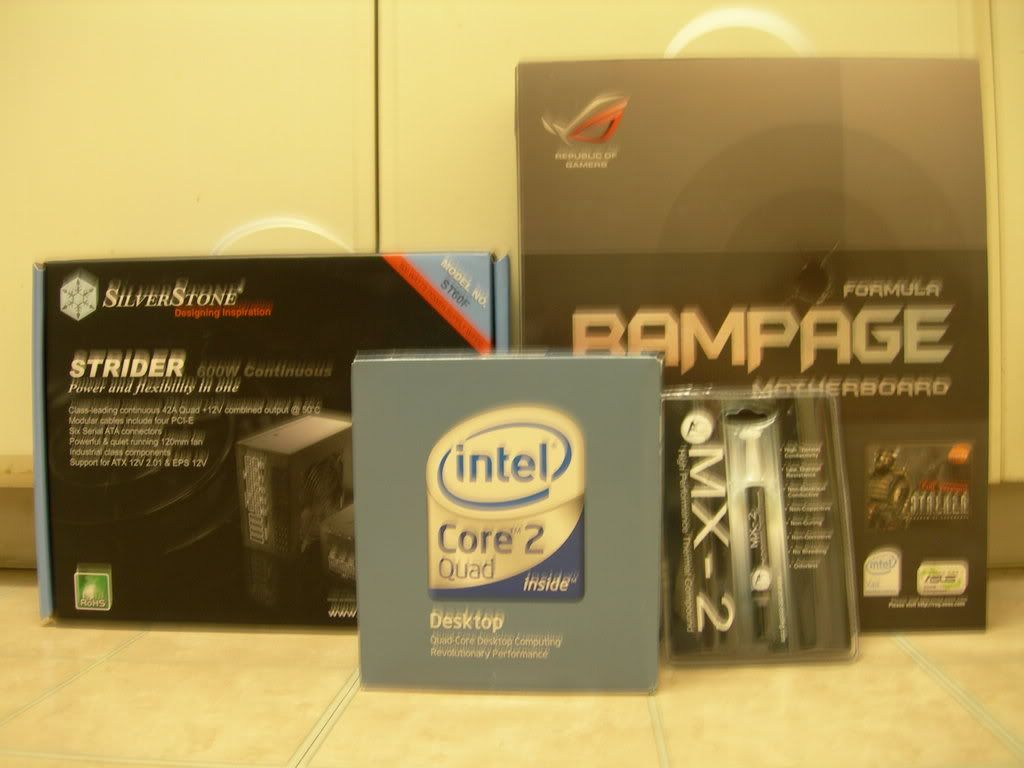

heres all my parts the way they came

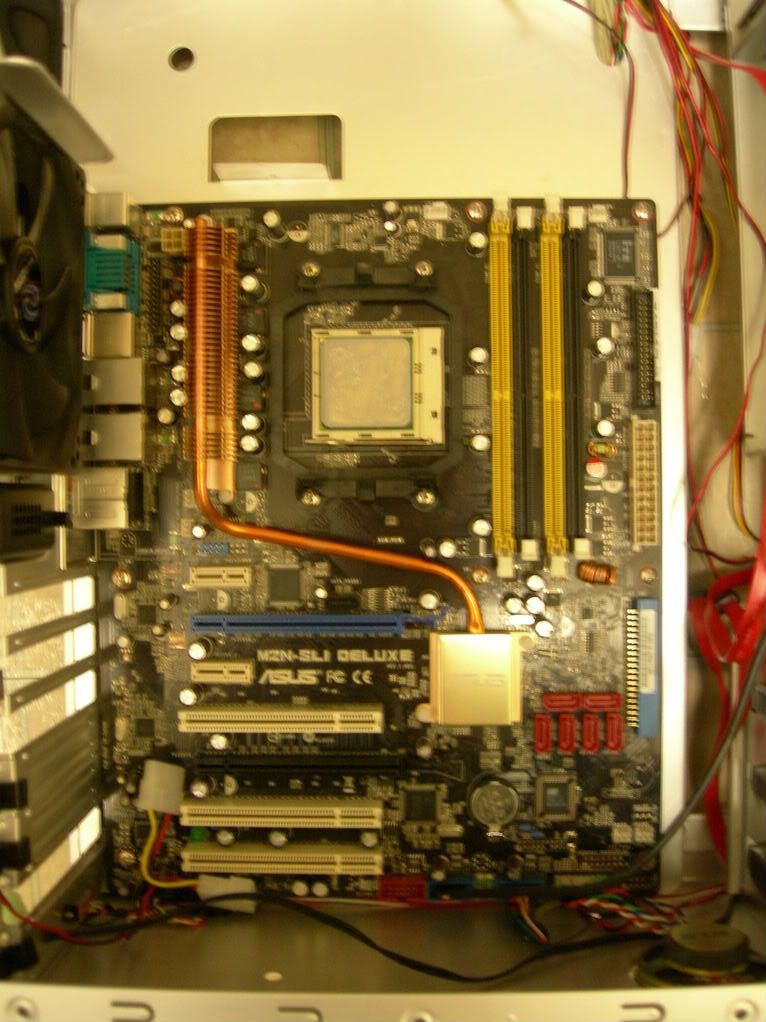

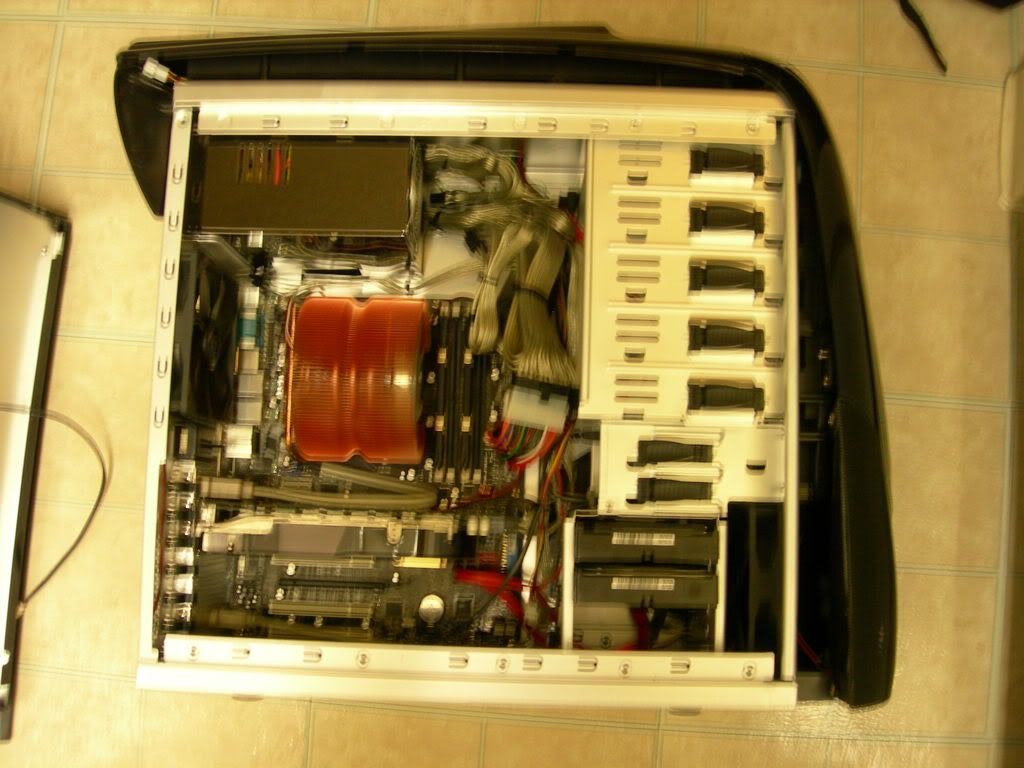

heres what i started with... my old M2N-SLI, X2 6000+, and Ultra X-Finity...


ill be reusing my RAM and 8800GTS until the 9900 series cards come out this July... so i set those aside...

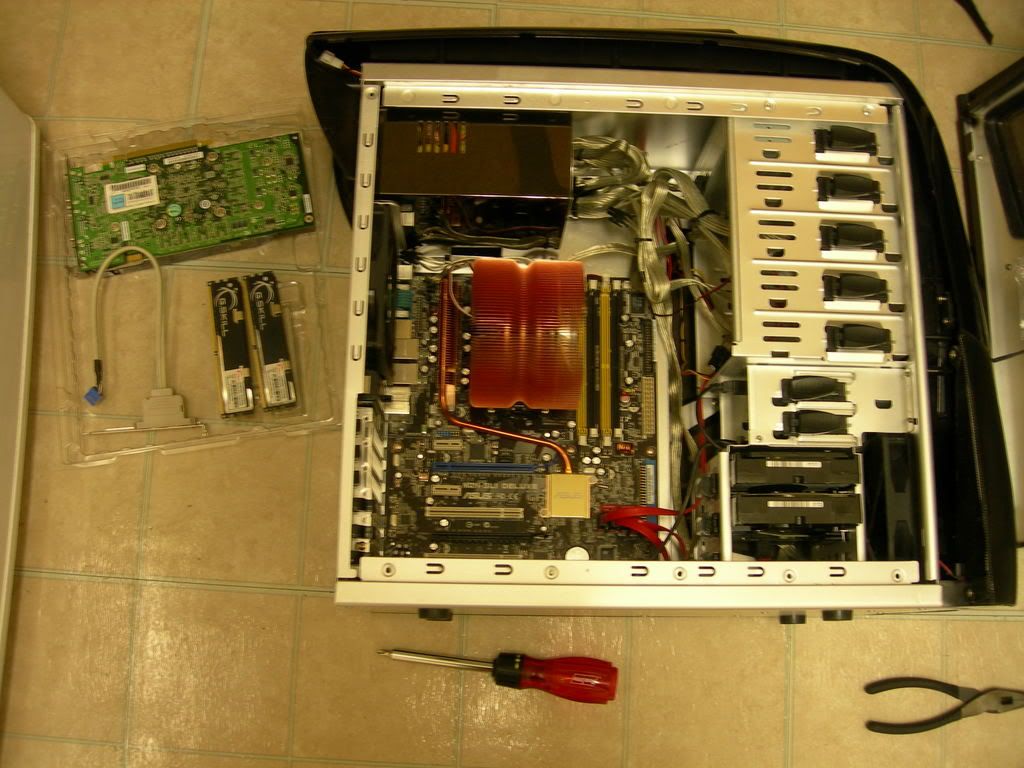

got the power supply out, and my Zalman 9700 HSF off... ill be reusing it too...

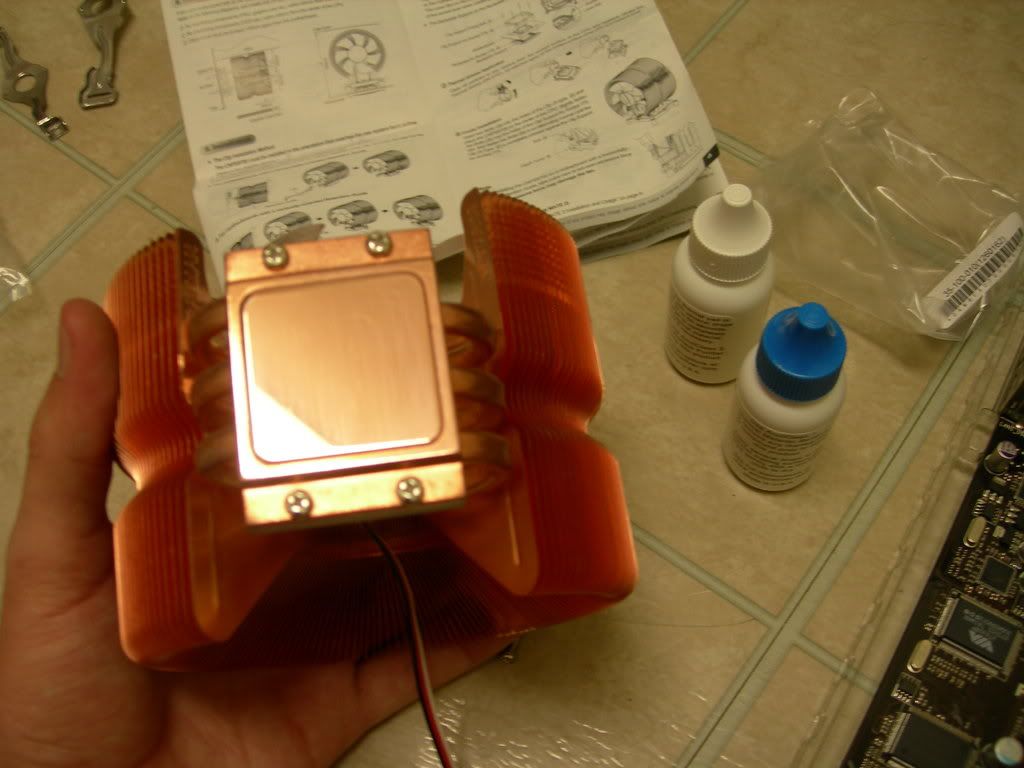

used the ArctiClean stuff i bought... and it worked reallyreally well on my HSF and my old chip... good stuff, and much easier than the alcohol wipes i used before... and theres plenty left to use later...

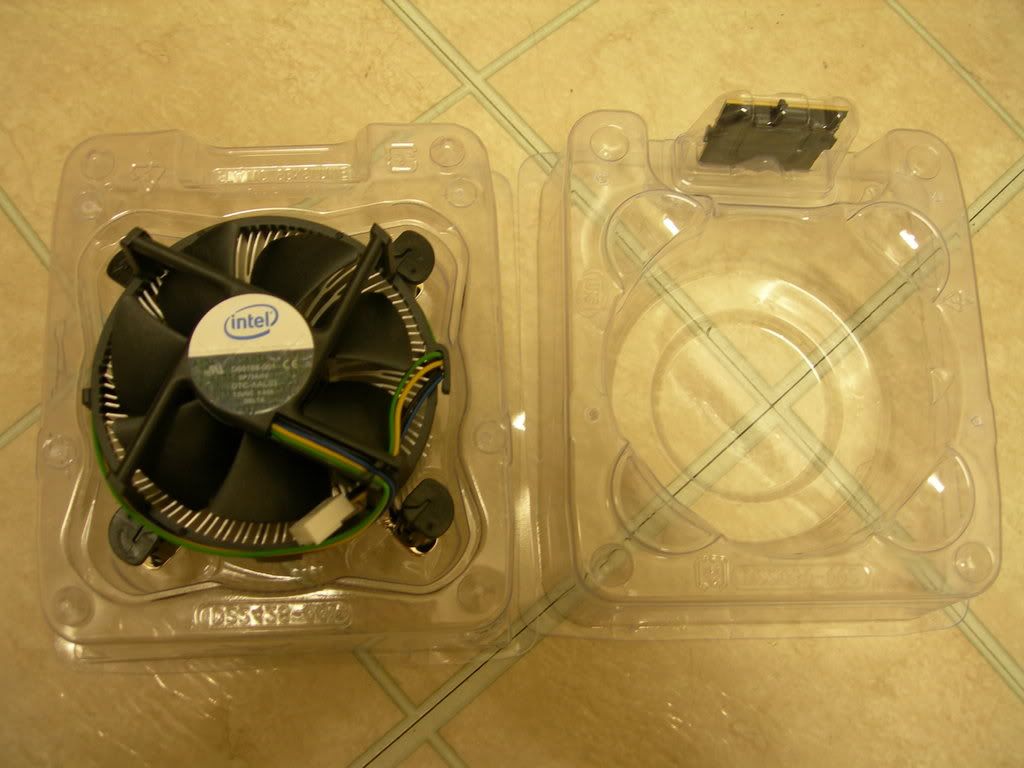

busted open my new QUAD-CORE CPU... (btw, intel has some of the most infuriating packaging EVER... XD) im not going to be using the stock cooler... anyone want it? haha


opened up my new Asus Rampage Formula motherboard too... like a Maximus... but better hehe


(continues ->)
__________________

__________________

*School, work, girls? No time for computers! :P*
therascalking is offline
Old 05-01-2008, 11:50 PM   #12 (permalink)
Devious Techie

therascalking's Avatar

Join Date: May 2007
Location: Fullerton, CA, USA
Posts: 479
Send a message via ICQ to therascalking Send a message via AIM to therascalking Send a message via Yahoo to therascalking
Default Re: New Upgrade Build! (Pics Soon!)

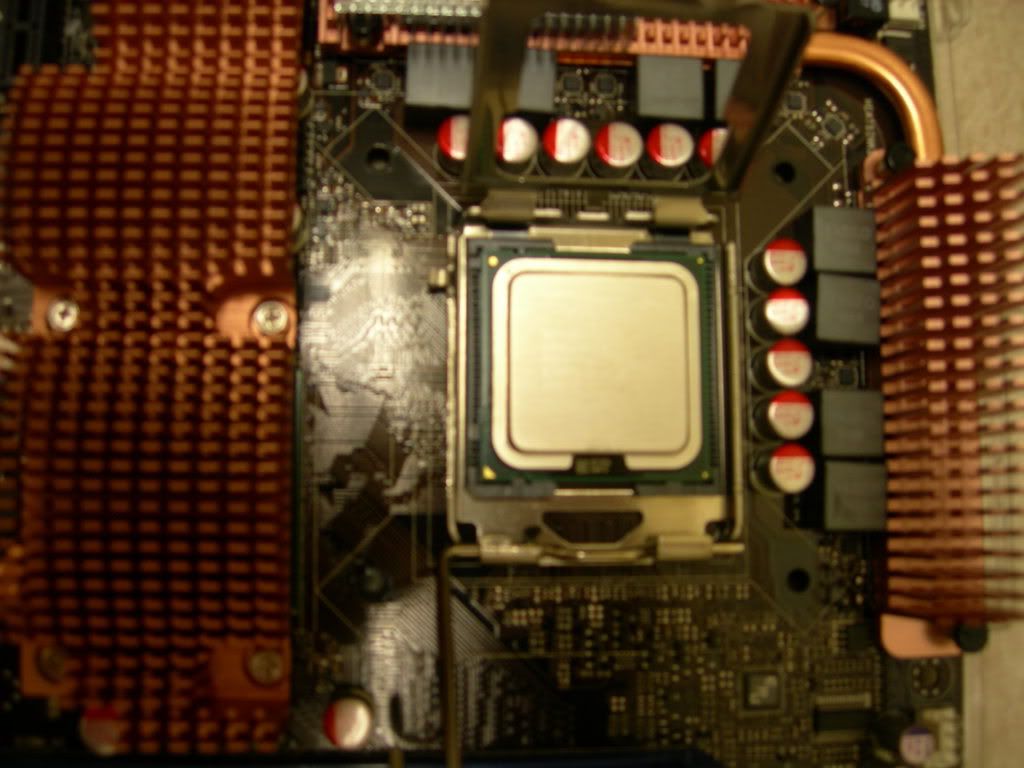

dropped my new Q6700 in... :laughing:

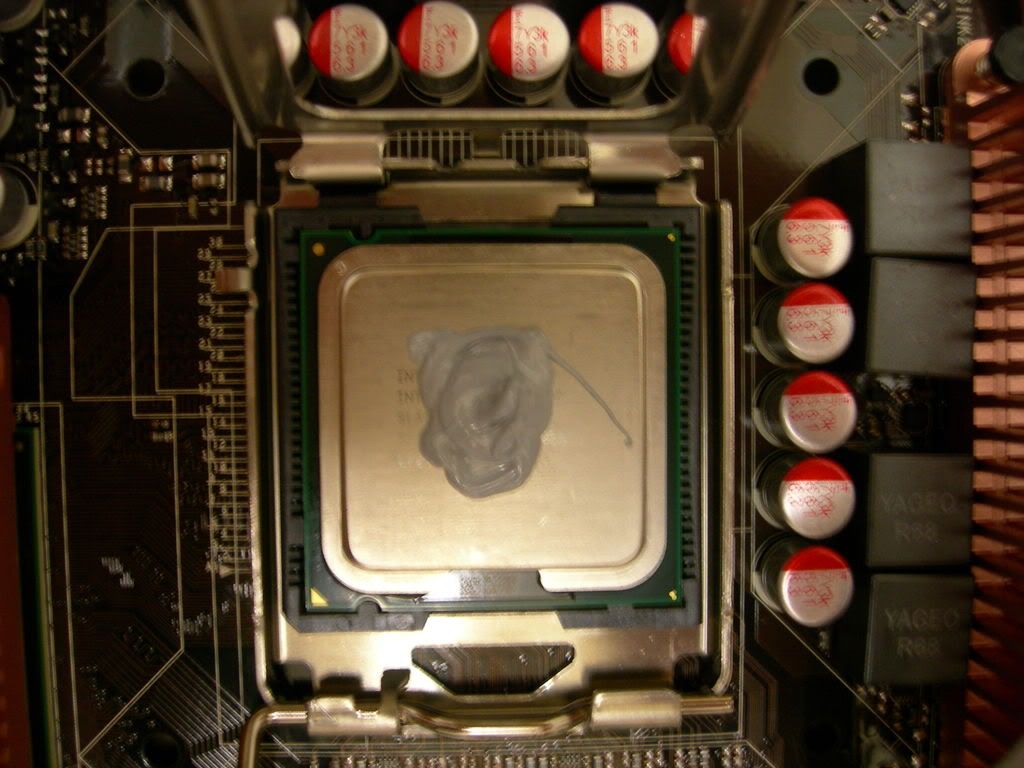

put on the ArcticCooling MX-2 thermal paste... a big glob right in the middle haha

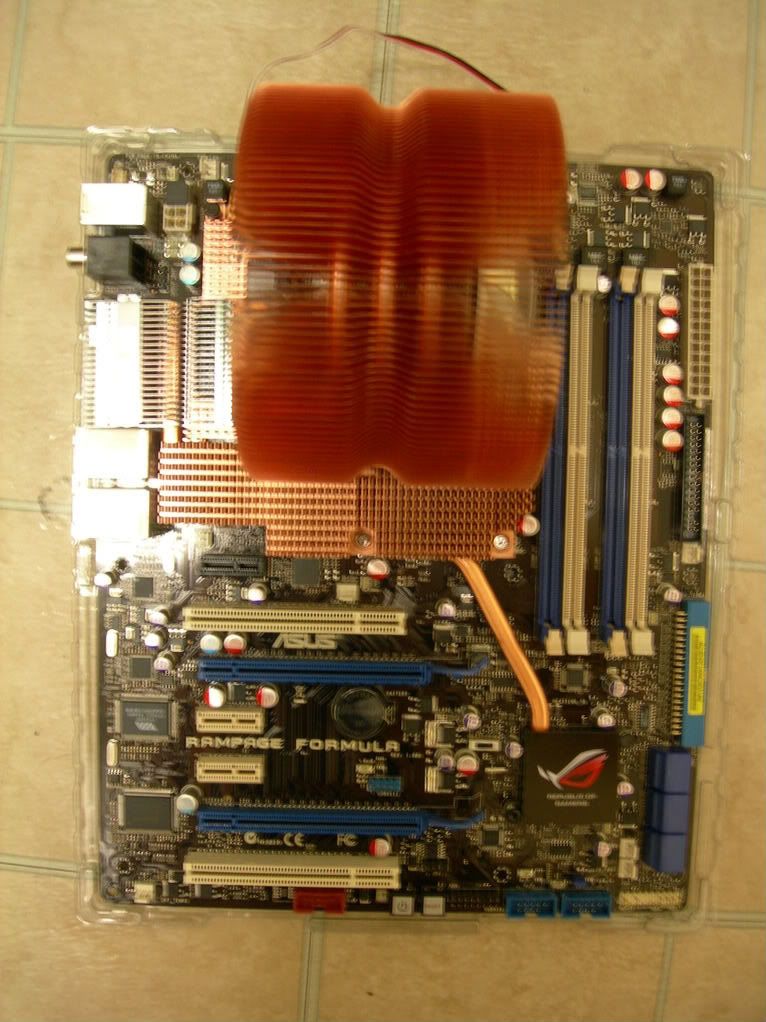

heres a shot from above with the HSF on... dang thats alot of copper, no?

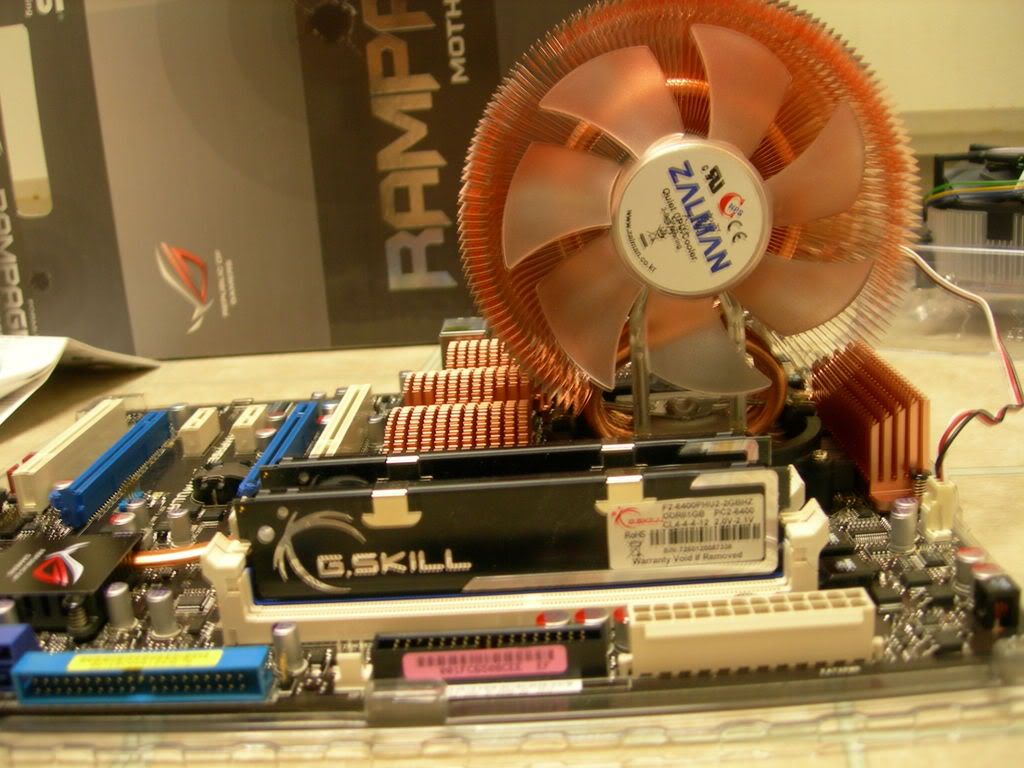

put in my RAM...

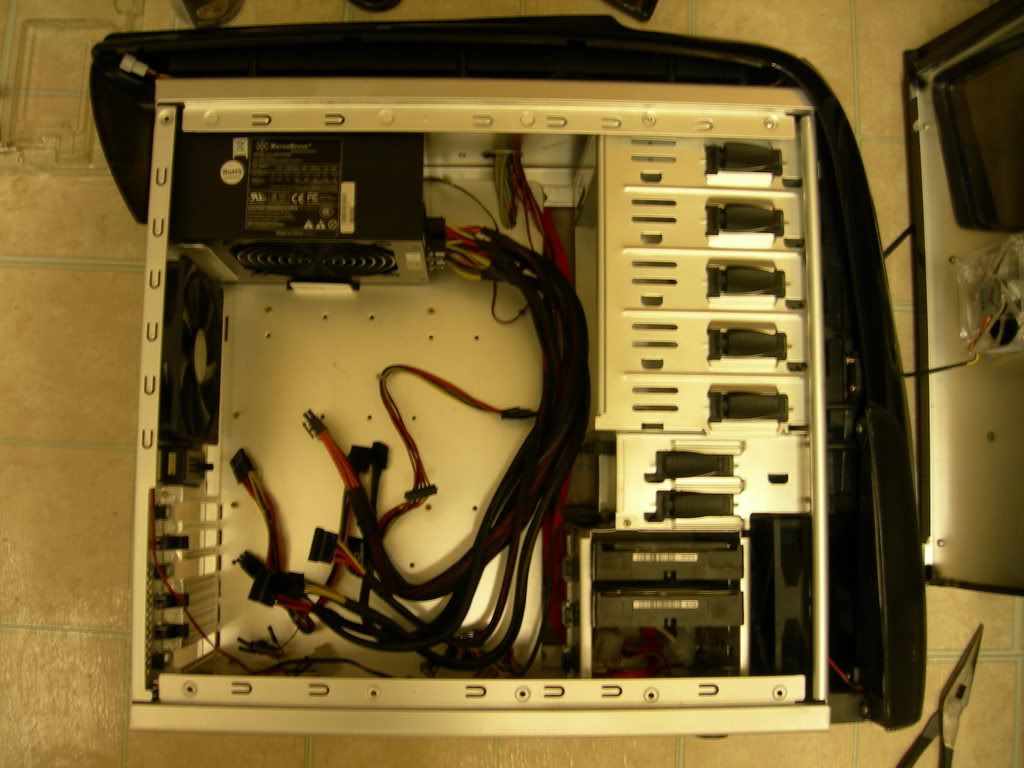

set that aside for a bit while i put in the new Silverstone Strider 600W...


put the mobo into my case... attached the USB/Firewire, and an eSATA bracket in their expansion bays... and put in my video card...

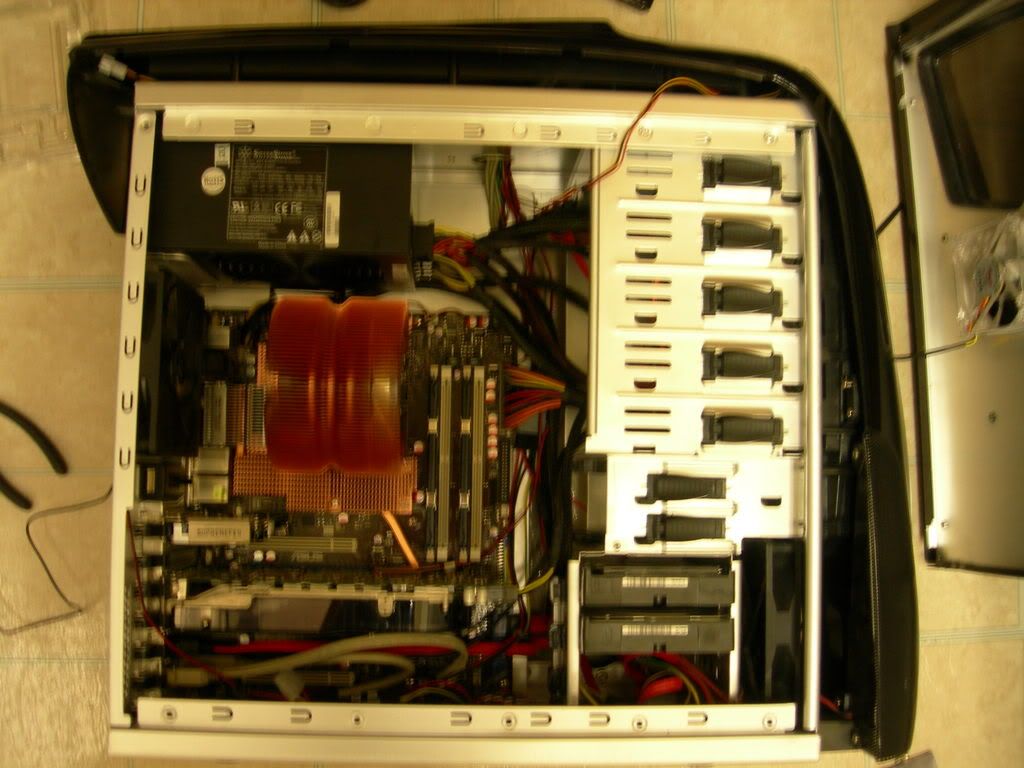

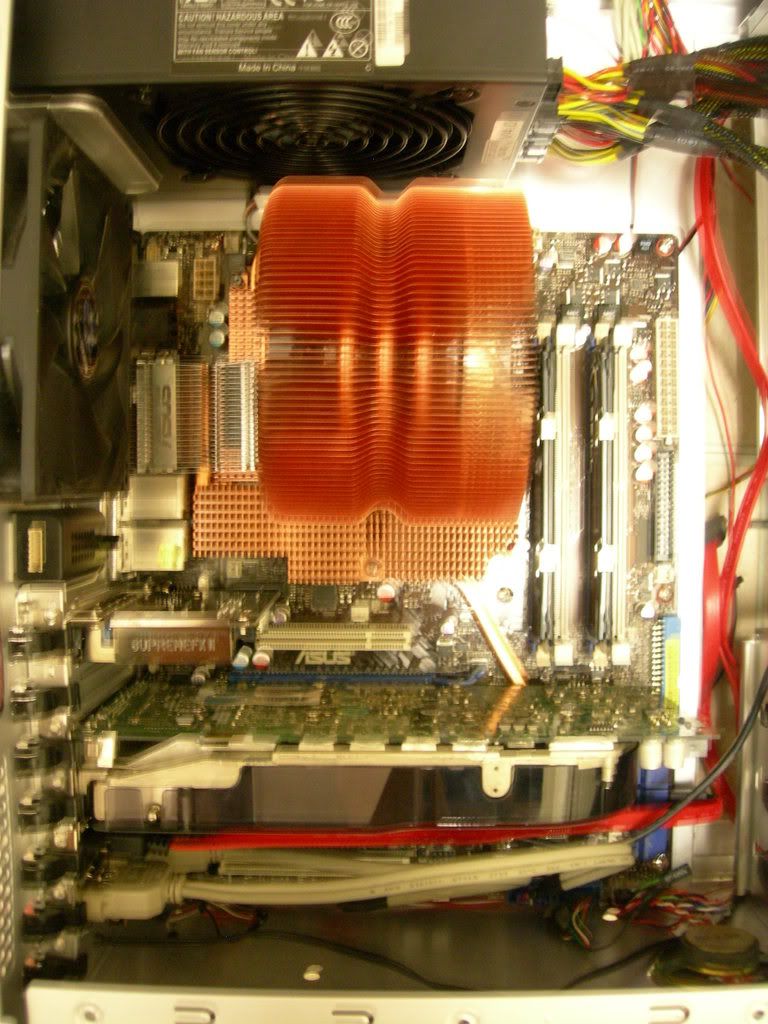

all the cables plugged in and ready to go! oh dear shes a messy beast tho... haha

well, there she is! sorry some of the pics arent that great of quality... it was late haha
well... i love my new parts so far, and i cant wait till my case gets here... let me know what you think, guys - RK
__________________

__________________

*School, work, girls? No time for computers! :P*
therascalking is offline
Old 05-02-2008, 12:16 AM   #13 (permalink)
The Water Cooling Guru

aspire's Avatar

Join Date: Feb 2005
Location: United States
Posts: 5,308
Default Re: New Upgrade Build! (Pics Soon!)

Wayyyyy to much thermal paste!!!
__________________
If I help you with something, you think I'm the bomb, or you just like what I said, rep me by clicking the star under my post.

Thanks!

The Official Tech Forums Water Cooling Informational Guide
aspire is offline
Old 05-02-2008, 12:23 AM   #14 (permalink)
Devious Techie

therascalking's Avatar

Join Date: May 2007
Location: Fullerton, CA, USA
Posts: 479
Send a message via ICQ to therascalking Send a message via AIM to therascalking Send a message via Yahoo to therascalking
Default Re: New Upgrade Build! (Pics Soon!)

Quote:
Originally Posted by aspire.comptech View Post
Wayyyyy to much thermal paste!!!
eh... i almost thought so... but it looks like way more in the pic than it was, i think... the glob wasnt very like... tall, you know? haha

its holding pretty steady at about 45C (bout 50C ish under load) @ 3.0GHz, which isnt too bad, i dont think... so i dont think im going to redo it... but if i really need to, i only used about half the MX-2, if that... so i have more... thanks for the concern tho - RK
__________________

*School, work, girls? No time for computers! :P*
therascalking is offline
Old 05-02-2008, 12:27 AM   #15 (permalink)
The Water Cooling Guru

aspire's Avatar

Join Date: Feb 2005
Location: United States
Posts: 5,308
Default Re: New Upgrade Build! (Pics Soon!)

Yeah um... half the mx2 is about 4 times too much...

And for a quad core you'll want to utilize the cross method of application.

From corner to corner with about a quater inch from the edge. Criss-crossing
in the middle.

That will give you best temps, and you only need about half a pea size drop for the whole thing.
__________________
If I help you with something, you think I'm the bomb, or you just like what I said, rep me by clicking the star under my post.

Thanks!

The Official Tech Forums Water Cooling Informational Guide
aspire is offline
Old 05-02-2008, 12:31 AM   #16 (permalink)
Devious Techie

therascalking's Avatar

Join Date: May 2007
Location: Fullerton, CA, USA
Posts: 479
Send a message via ICQ to therascalking Send a message via AIM to therascalking Send a message via Yahoo to therascalking
Default Re: New Upgrade Build! (Pics Soon!)

Quote:
Originally Posted by aspire.comptech View Post
Yeah um... half the mx2 is about 4 times too much...
And for a quad core you'll want to utilize the cross method of application.
From corner to corner with about a quarter inch from the edge. Criss-crossing
in the middle.
That will give you best temps, and you only need about half a pea size drop for the whole thing.
hmmm... yea, i did use a bit too much then... is it really worth redoing tho? whats an optimum temp for my setup, you think? is it that much lower than what im running at? :* - RK
__________________

*School, work, girls? No time for computers! :P*
therascalking is offline
Old 05-02-2008, 12:36 AM   #17 (permalink)
The Water Cooling Guru

aspire's Avatar

Join Date: Feb 2005
Location: United States
Posts: 5,308
Default Re: New Upgrade Build! (Pics Soon!)

Should be fine for the week or w/e until you get the new case, but please redo it then, You should be looking at temps in the mid 30's.
__________________
If I help you with something, you think I'm the bomb, or you just like what I said, rep me by clicking the star under my post.

Thanks!

The Official Tech Forums Water Cooling Informational Guide
aspire is offline
Old 05-02-2008, 12:36 AM   #18 (permalink)
Lord Techie

Luke's Avatar

Join Date: Dec 2007
Location: Fonthill, Ontario, Canada
Posts: 5,601
Send a message via AIM to Luke Send a message via MSN to Luke
Default Re: New Upgrade Build! (Pics Soon!)

wow thats a lot of thermal paste...it should just be a little pee size dot in the middle or a very thin line...or a cross.

Is this your first build?

Edit: Why do u have a case speaker?
__________________
3770K @ 4.7 Ghz H100 Water Cooled | GTX 970 MSI Gold Edition SLI
32GB G.Skill RipJaws (Rendering/ Virtualization) | Corsair 650D | CORSAIR RM1000W w/ White Cable KIt
Samsung 850 Pro 256 GB SSD Boot | OCZ Vertex 3 240GB SSD Secondary | WD Black 1 TB | WD Green 3 TB
Server: Core i7 920 | 8GB RAM | Intel 240gb 730 SSD Boot | 3 x 2TB WD RED | Fractal R4
Luke is offline
Old 05-02-2008, 12:39 AM   #19 (permalink)
Devious Techie

therascalking's Avatar

Join Date: May 2007
Location: Fullerton, CA, USA
Posts: 479
Send a message via ICQ to therascalking Send a message via AIM to therascalking Send a message via Yahoo to therascalking
Default Re: New Upgrade Build! (Pics Soon!)

Quote:
Originally Posted by aspire.comptech View Post
Should be fine for the week or w/e until you get the new case, but please redo it then, You should be looking at temps in the mid 30's.
Quote:
Originally Posted by luke992006 View Post
wow thats a lot of thermal paste... it should just be a little pee size dot in the middle or a very thin line... or a cross. lol your not trying to glue it on...
wow, okay... ill for sure redo it then... thats a pretty big difference in temps... thanks guys, issue resolved - RK
__________________

*School, work, girls? No time for computers! :P*
therascalking is offline
Old 05-02-2008, 12:47 AM   #20 (permalink)
The Water Cooling Guru

aspire's Avatar

Join Date: Feb 2005
Location: United States
Posts: 5,308
Default Re: New Upgrade Build! (Pics Soon!)

On a random note, are you going to be going to the Nvision Lan this summer rascal?
