Question I need help with RAM

Hey I'm trying to update my RAM from 4GB to 8 or more and was wondering how and where I can find RAM compatible with a HGT 3.0 GIGABYTE mobo. I'm currently using two ddr3 RAM both 2gb a piece but don't know their origin or what brand they are. Please help and thanks!
__________________

cgm24 is offline   Reply With Quote
Old 12-02-2014, 10:00 PM   #2 (permalink)
Wizard Techie

Join Date: May 2011
Posts: 3,077
Default Re: I need help with RAM

Quote:
HGT 3.0
That's not enough to tell us what and how much memory your motherboard can use. You can post the complete model and version number and I'll look it up for you or just go to the Gigabyte web site and find the specs for your motherboard
Most Gigabyte boards start with a GAxxx-xx type of model number
__________________

Joe C is offline   Reply With Quote
Old 12-02-2014, 10:04 PM   #3 (permalink)
Newb Techie

Join Date: Dec 2014
Location: GA USA
Posts: 12
Default Re: I need help with RAM

So where would I find (on the motherboard) the complete model and version number?
cgm24 is offline   Reply With Quote
Old 12-02-2014, 10:25 PM   #4 (permalink)
Lord Techie

Join Date: Feb 2005
Location: asdf
Posts: 8,886
Default Re: I need help with RAM

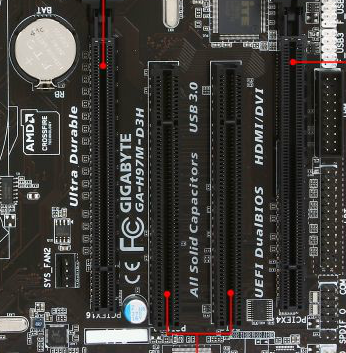

Around the PCI/PCIe slots... Gigabyte usually places it near the first or second slot, there will be a large FCC logo, then Gigabyte, then below the name Gigabyte you will see something like GA-XXXX-XXX replace the X with a letter or number.

Example:

This board is a Gigabyte GA-H97M-D3H


Alternatively you can download cpu-z from cpuid.com run it, then select Mainboard and it will tell us everything we need to know.
c0rr0sive is offline   Reply With Quote
Old 12-02-2014, 10:30 PM   #5 (permalink)
Newb Techie

Join Date: Dec 2014
Location: GA USA
Posts: 12
Default Re: I need help with RAM

  1. GA-MA770-DS3 is the model and on the site is says
    4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
  2. Dual channel memory architecture
  3. Support for DDR2 1066 (Note 2)/800/667 MHz memory modules
  4. Support ECC memory (Note 3)
I am tech illiterate and don't know what that means
In regards to RAM that is
cgm24 is offline   Reply With Quote
Old 12-02-2014, 10:43 PM   #6 (permalink)
Lord Techie

Join Date: Feb 2005
Location: asdf
Posts: 8,886
Default Re: I need help with RAM

How much ram are you wanting to use? That motherboard supports DDR2-800 (1066 if you have the right CPU though) upto 16GB. Basically you can have 4, 4GB sticks of DDR2-800, if you have Windows XP though, you won't be able to use more than 4GB of the RAM.

As for upgrades here are your options pretty much... DDR2 isn't manufactured much anymore, so it's getting difficult to find, and it's rather costly to upgrade a DDR2 based system. You could potentially be better off saving up and building new if you was needing 16GB of RAM.
Computer Parts, Laptops, Electronics, and More - Newegg.com
c0rr0sive is offline   Reply With Quote
Old 12-02-2014, 10:45 PM   #7 (permalink)
Newb Techie

Join Date: Dec 2014
Location: GA USA
Posts: 12
Default Re: I need help with RAM

Well as much as I can. I just got this thing and would like to run games and other applications on it so I suppose as much as I can take it. That being said, Im not sure about its CPU (I highly doubt its up to date) is there a way I can check?
cgm24 is offline   Reply With Quote
Old 12-02-2014, 10:52 PM   #8 (permalink)
Lord Techie

Join Date: Feb 2005
Location: asdf
Posts: 8,886
Default Re: I need help with RAM

The cpu wont be "upto date" it's a rather old system all together if it's using DDR2

The most your board can handle is 4 sticks of 4GB DDR2-800, you are looking at $400 in RAM....
c0rr0sive is offline   Reply With Quote
Old 12-02-2014, 10:57 PM   #9 (permalink)
Newb Techie

Join Date: Dec 2014
Location: GA USA
Posts: 12
Default Re: I need help with RAM

NVM I found my CPU data
cgm24 is offline   Reply With Quote
Old 12-02-2014, 11:00 PM   #10 (permalink)
Private Joker

carnageX's Avatar

Join Date: Feb 2007
Location: South Dakota
Posts: 24,507
Default Re: I need help with RAM

Quote:
Originally Posted by c0rr0sive View Post
The most your board can handle is 4 sticks of 4GB DDR2-800, you are looking at $400 in RAM....
Can find it used for cheaper. Single sticks of 4gig will be harder to find in throwaway systems though... lol.
__________________

__________________
Laptop: MSI GT70 2OC-059us | i7-4700MQ | 16GB | GTX 770m | 500GB SSD / 750GB HDD | 17.3" | Win10 Pro
Desktop: 4690k | 12GB g.Skill RipJaws | GTX 970 | 520hx | Z87X-UD4H | Corsair Vengeance C70 | Corsair H110 | Acer 25" | Acer 22" | Win10
Mobile: Samsung Galaxy Note 5


If I help you, or you just like what I said, rep me by clicking the under my post
carnageX is offline   Reply With Quote
