ok, so i didnt win the lottery tonight, but i did win the 2 dollar prize

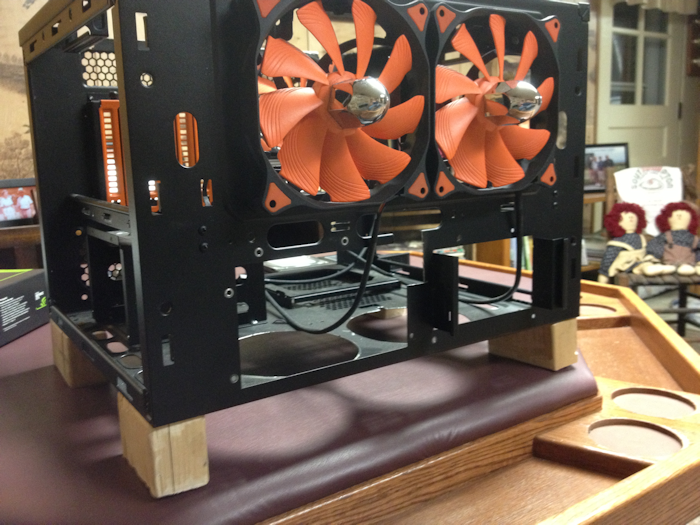

here goes, prepped case for hardware install

dont laugh at my temp feet !!! the real ones will get installed next time i get home

1st thing to do was the easiest thing, install my front panel fan filter behind the fans


I then installed the SSD and HDD, no photos as they cant be seen from outside anyways.
next was to slap in the PSU, ......I am not liking the single braided cables, they are a real pain in the *** due to stiffness, but anyhoot, what can i do.


next up was to lay down the motherboard tray with the mobo in it, and connect the 24 and 8 pins


my workstation for the night:

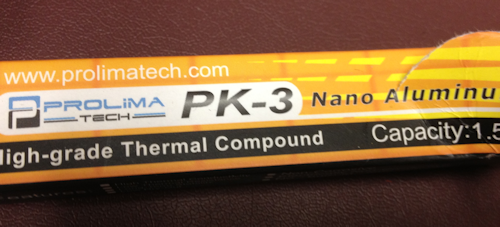

next was to apply some thermal paste, i used:

(had to take that gunk off the x60 that was preinstalled)
my grain of rice


release tha kraken!
