Old 01-17-2009, 03:03 PM   #1 (permalink)
Junior Techie

[Judge]Iceman's Avatar

Join Date: Nov 2008
Posts: 49
Default OCing with 680iLT / BIOS Q.

First off, my specs.

The board is made by XFX.
My problem is, when in the BIOS, the option to change the FSB is there but it is 'grayed out'.
Now, I've read that people had to change their BIOS version to something other than the manufacturer's supported versions.
The BIOS version I have is not the most current, there is a P08 available from XFX's website. Here's where I run into my other problem. Every board I have ever updated the BIOS on, has been in an ISO format. Burn that to a disc and boot from it. Easy and simple. XFX's previous BIOS update was an ISO but in all of their wisdom, released the P08 as a BIN file. They also say to use their WinFlash utility to update the BIOS from windows, something that I was told NEVER to do. Soooooooo. How do I go about updating the BIOS with the BIN file they gave me? And will this even 'fix' the grayed out FSB?

Please and thank you!
__________________

[Judge]Iceman is offline
Old 01-17-2009, 08:00 PM   #2 (permalink)

patonb's Avatar

Join Date: Jan 2005
Location: In Gov't Regulated Cubical
Posts: 9,745
Default Re: OCing with 680iLT / BIOS Q.

My XFX 680i sli ocs fine.

You need to "unlink" the fsb to memory, then oc.

EDIT!

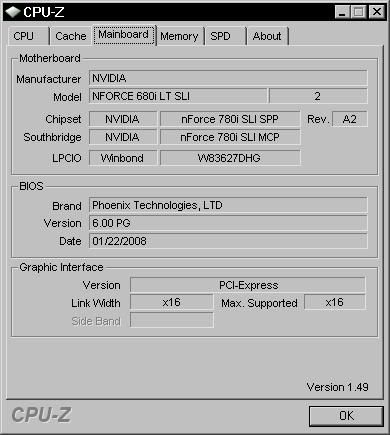

WTF, your boards a 680i with 780i chipset???
__________________

__________________
Foldie = i5 6600kMSI Z170A M5 EVGA 970 SC Corsair H100 Corsair hx520 2x8gb GSkill Corsair 650D
Woohoo = L5639 @3.1Ghz EVGA SR-2 gtx 260-216 Hyper 212+ Corsair 1050hx 6x2gb Corsair XMS3 Blackhawk Ulra
Alienware 18 - SLI 770M 4700mq 16Gig

patonb is offline
Old 01-17-2009, 08:38 PM   #3 (permalink)
Inspired by Art

tastegw's Avatar

Join Date: Dec 2008
Location: PA
Posts: 1,400
Default Re: OCing with 680iLT / BIOS Q.

why is your cpu running @ 1.6ghz?
speedstepping?
__________________
tastegw is offline
Old 01-17-2009, 09:09 PM   #4 (permalink)

patonb's Avatar

Join Date: Jan 2005
Location: In Gov't Regulated Cubical
Posts: 9,745
Default Re: OCing with 680iLT / BIOS Q.

Yup, thats why his multipliers x6
__________________
Foldie = i5 6600kMSI Z170A M5 EVGA 970 SC Corsair H100 Corsair hx520 2x8gb GSkill Corsair 650D
Woohoo = L5639 @3.1Ghz EVGA SR-2 gtx 260-216 Hyper 212+ Corsair 1050hx 6x2gb Corsair XMS3 Blackhawk Ulra
Alienware 18 - SLI 770M 4700mq 16Gig

patonb is offline
Old 01-17-2009, 10:07 PM   #5 (permalink)
Junior Techie

[Judge]Iceman's Avatar

Join Date: Nov 2008
Posts: 49
Default Re: OCing with 680iLT / BIOS Q.

Quote:
Originally Posted by patonb View Post
My XFX 680i sli ocs fine.

You need to "unlink" the fsb to memory, then oc.

EDIT!

WTF, your boards a 680i with 780i chipset???
I have no idea. Someone else I was talking to mentioned that as well. What does that mean in terms of good or bad? LOL

Ill unlink them and see what I can do.
[Judge]Iceman is offline
Old 01-17-2009, 10:32 PM   #6 (permalink)
Master Techie

Shumway's Avatar

Join Date: May 2004
Location: London - Ontario - Canada
Posts: 2,729
Default Re: OCing with 680iLT / BIOS Q.

Its just reading the chip wrong.

cpu-z does that with both my board and the father in-laws board.

mine shows as a 650i when its a 750i and his shows as a 750i when its a 650i
Shumway is offline
Old 01-17-2009, 11:29 PM   #7 (permalink)
Junior Techie

[Judge]Iceman's Avatar

Join Date: Nov 2008
Posts: 49
Default Re: OCing with 680iLT / BIOS Q.

Ok, well after I unlinked them and started playing around, I bumped it in 300MHz increments. I'm up to 3.3GHz. Idle is ~35C and under load it capped out at ~52C. I ran a 15 minute stress test to see the temps I would approx get. I don't really want to get it any warmer than that. Does that sound about right, speed : temp ratio?
[Judge]Iceman is offline
Old 01-18-2009, 12:38 AM   #8 (permalink)
Inspired by Art

tastegw's Avatar

Join Date: Dec 2008
Location: PA
Posts: 1,400
Default Re: OCing with 680iLT / BIOS Q.

Quote:
Originally Posted by [Judge]Iceman View Post
Ok, well after I unlinked them and started playing around, I bumped it in 300MHz increments. I'm up to 3.3GHz. Idle is ~35C and under load it capped out at ~52C. I ran a 15 minute stress test to see the temps I would approx get. I don't really want to get it any warmer than that. Does that sound about right, speed : temp ratio?
3.3 is nothing to be shameful of.
thats a decent OC.
__________________
tastegw is offline
Old 01-18-2009, 12:40 AM   #9 (permalink)
Junior Techie

[Judge]Iceman's Avatar

Join Date: Nov 2008
Posts: 49
Default Re: OCing with 680iLT / BIOS Q.

Would there be any advantage to me dropping the multiplier down to eight and running the FSB at 400 so it is 1:1 with my RAM? The clock would be 3.2 which is still nice and I may see a nicer temp under load.
[Judge]Iceman is offline
Old 01-18-2009, 10:20 AM   #10 (permalink)

patonb's Avatar

Join Date: Jan 2005
Location: In Gov't Regulated Cubical
Posts: 9,745
Default Re: OCing with 680iLT / BIOS Q.

BUT is it stable. My 3.2 is90% stable till i really worked it ~ 12hrs prime, or smp folding
__________________

__________________
Foldie = i5 6600kMSI Z170A M5 EVGA 970 SC Corsair H100 Corsair hx520 2x8gb GSkill Corsair 650D
Woohoo = L5639 @3.1Ghz EVGA SR-2 gtx 260-216 Hyper 212+ Corsair 1050hx 6x2gb Corsair XMS3 Blackhawk Ulra
Alienware 18 - SLI 770M 4700mq 16Gig

patonb is offline
