Old 03-09-2008, 11:24 AM   #131 (permalink)
Techie Beyond Description

veg1992's Avatar

Join Date: Dec 2006
Posts: 19,993
Default Re: Official AMD Overclocking Thread.

he's already at 3.3 ghz as well
__________________

__________________
I do not accept help requests and/or deleted threads/complaints by PM, Profile or IM/Email. Just ask on the forums! Also, I do have Lockerz invites if you want them, feel free to PM me your email if you want one :0

If I help you, or you just like what I said, rep me by clicking the
or under my avatar; it helps me know that my advice actually helped you.


.. But things don't go according to plan! My Actual Rig, 2009:
veg1992 is offline
Old 03-09-2008, 11:37 AM   #132 (permalink)
TF's First Dry Ice User!

Peter.Cort's Avatar

Join Date: Jul 2007
Location: Boston, MA
Posts: 5,018
Default Re: Official AMD Overclocking Thread.

im gonna get to 3.4
__________________

__________________
A notice to EVERYONE who has posted here with a computer problem, I highly encourage you to keep current with the forums, even if it's browsing for 10-15 minutes during lunch, or before you go to bed at night. There are many things that you can learn and apply to future issues. My goal is to help people get to a point where they can use their own knowledge to help themselves, and others.

Also please use the search button. You've got a 50/50 chance that someone's asked your question and we've answered it.
Peter.Cort is offline
Old 03-16-2008, 05:38 PM   #133 (permalink)
Ultra Techie

spikoman69's Avatar

Join Date: Nov 2006
Posts: 726
Default Re: Official AMD Overclocking Thread.

(Huge Re-Edit)
Right now Im stable, but Im trying to raise my ram up now, and I cant even get DDR 533 with 2.3v. Windows will load, and either flash BSOD and restart, or it just stays black after. DDR400 works flawless at stock volatges.

2950mhz
10.5x multi
281mhz Bus Speed
843mhz HT link speed
1.344v Vcore
cpu/11 FSB/DRAM Ratio
268.2mhz Dram Freq.

Will i notice any difference in performence if i go from ddr400 to ddr533 or 667, which will change the fsb/ram ratio, and up my dram freq to near 400?
Should I try upping me vcore some?
Could my problem possibly be that im running the onboard video? Should i wait to overclock until i get my 8800gs?
__________________
AMD Phenom II 960t BE @ 4.3ghz // Corsair Vengence 4x2Gb 1600mhz
EVGA GTX 460 @ 840mhz Core 1960mhz Memory// ASRock 970 Extreme AM3+
NZXT M59 Case Black and Blue Scheme // Corsair H80
University of Michigan // Electrical and Computer Engineering
spikoman69 is offline
Old 03-16-2008, 08:50 PM   #134 (permalink)
Master Techie

Shumway's Avatar

Join Date: May 2004
Location: London - Ontario - Canada
Posts: 2,729
Default Re: Official AMD Overclocking Thread.

Processor: 3000+ venice
Stepping: 2 (?)
Revision: DH-E6
VID: 1.4
Final Clock: 2601mhz
Final Vcore: 1.4

Power supply: Okia 600w
MotherBoard: Asrock939 Dual-VSTA
RAM: OCZ Premier Series
Timmings: 2.5-3-3-7
RAM to FSB: cpu/14
Final RAM Voltage: 2.7

Stress testing program: Prime 95 - Pi - Gaming
Hour of Stability: Lots
Max Load Temparture: 48*
Reason for Stress Test End: Too Long

Heatsink: Arctic Freezer 64 Pro
Thermal Paste: Arctic Silver 5
Lapped Heatsink: nope
Lapped Processor: nope

Can't really tell what other voltages like NB and that are,My mobo only has low-med-high and i'm just too lazy to research

Shumway is offline
Old 03-17-2008, 06:39 AM   #135 (permalink)
Techie Beyond Description

Apokalipse's Avatar

Join Date: Jun 2003
Location: Melbourne, Australia
Posts: 14,559
Default Re: Official AMD Overclocking Thread.

Quote:
Originally Posted by spikoman69 View Post
Should I try upping me vcore some?
that's what I'd do.
I'm not sure what Brisbane's are like, but I've been able to feed 1.725V to my 6000+

The main issue with that is the heat output. but, I've got a good watercooling system.
__________________
Apokalipse is offline
Old 03-17-2008, 05:09 PM   #136 (permalink)
Ste
Do not Stare at my Avatar

Ste's Avatar

Join Date: Aug 2005
Location: Upon Gleaning Infinity
Posts: 9,577
Send a message via MSN to Ste
Default Re: Official AMD Overclocking Thread.

spikoman69: Post your entry in the format outlined in the first post. Else I will not add your final clock.
Ste is offline
Old 03-17-2008, 11:16 PM   #137 (permalink)
Ultra Techie

spikoman69's Avatar

Join Date: Nov 2006
Posts: 726
Default Re: Official AMD Overclocking Thread.

I was more looking for help with overclocking, but Im stable now, so ill post up.

Processor:AMD X2 4000+ Brisbane
Stepping: 1
Revision: BH-G1
VID:1.36
Final Clock:2950mhz (281mhzx10.5)
Final Vcore:1.36

Power supply:Rosewill RP-500 2 500w
MotherBoard:Biostar T-force 7025A
RAM:Wintec Ampo 2x1gb DDR800
Timmings:Stock
RAM to FSB:Cpu/8
Final RAM Voltage:2.25

Stress testing program:Prime 95
Hour of Stability:6 hours of stressing, about a week of normal gaming/internet
Max Load Temparture: 48c
Reason for Stress Test End:It was long enough?

Heatsink:Stock
Thermal Paste:Stock
Lapped Heatsink:Negative/no
Lapped Processor:Negative/no

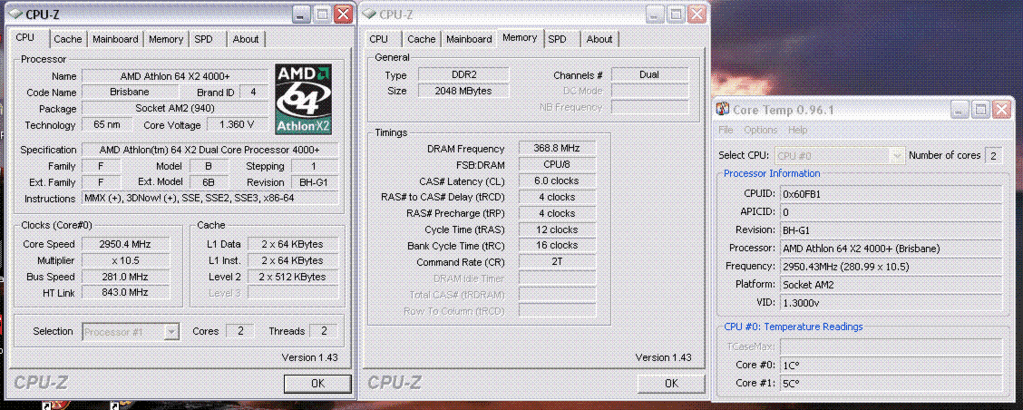

Core temp AND CPUZ Screen Shot:


Pic looks bad, cause I converted to .gif in paint. ^^
Voltage Information Picture: Can't Obtain/lazy

Northbridge - 1.27v
Ram - 2.25v
CPU - 1.36v
__________________
AMD Phenom II 960t BE @ 4.3ghz // Corsair Vengence 4x2Gb 1600mhz
EVGA GTX 460 @ 840mhz Core 1960mhz Memory// ASRock 970 Extreme AM3+
NZXT M59 Case Black and Blue Scheme // Corsair H80
University of Michigan // Electrical and Computer Engineering
spikoman69 is offline
Old 03-19-2008, 04:40 AM   #138 (permalink)
Techie Beyond Description

Apokalipse's Avatar

Join Date: Jun 2003
Location: Melbourne, Australia
Posts: 14,559
Default Re: Official AMD Overclocking Thread.

Quote:
Originally Posted by spikoman69 View Post
Pic looks bad, cause I converted to .gif in paint. ^^
if you use PNG's, you still get a small file size if there are block colours everywhere.
__________________
Apokalipse is offline
Old 03-19-2008, 11:41 AM   #139 (permalink)
Ultra Techie

spikoman69's Avatar

Join Date: Nov 2006
Posts: 726
Default Re: Official AMD Overclocking Thread.

Doesnt matter to me really, it still gets the information across to everyone.
__________________
AMD Phenom II 960t BE @ 4.3ghz // Corsair Vengence 4x2Gb 1600mhz
EVGA GTX 460 @ 840mhz Core 1960mhz Memory// ASRock 970 Extreme AM3+
NZXT M59 Case Black and Blue Scheme // Corsair H80
University of Michigan // Electrical and Computer Engineering
spikoman69 is offline
Old 03-23-2008, 09:26 AM   #140 (permalink)
disgruntled ex-moderator

Nagasama's Avatar

Join Date: Oct 2006
Location: probably on the lake
Posts: 6,956
Default Re: Official AMD Overclocking Thread.

Quote:
Originally Posted by Wildside View Post
last time i OCed my CPU, i turned down the FSB to 217, n raised the multiplier to 15.5x, giving me 3.33GHz!

BEAT THAT NAGASAMA!
i have my clock at 254 x 13 right now for 3.3 . with 1.375 volts.

i will try tonite to get to 3.4+ and post up results heh heh.

should (theoretically) be as simple as dropping my clock to 243 and raising my ht multi to 14.

i haven't been messing with it much as i have been busy, and it SMOKES at 3.3ghz.
__________________

__________________
"nagasama no longer drinks tecate, or streaks out of the night for anything, and he has a fine wife so he has no use for your girlfriend...she is safe..."
Nagasama is offline
